AMOLED, PMOLED

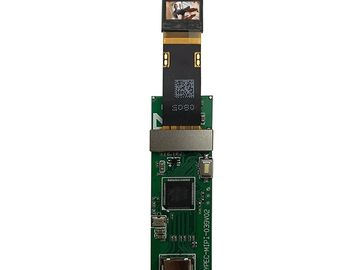

Small-size, high resolution 0.39 FHD Display PPI=5644
Full color mode,16.7M colors
Sharpnessenhancement
High contrast mode
High fluency mode
Power-saving (PS) mode
Scan direction selection, up or down
lnterface: Support MIPI only or MIPI(data)+I2C(CMD)

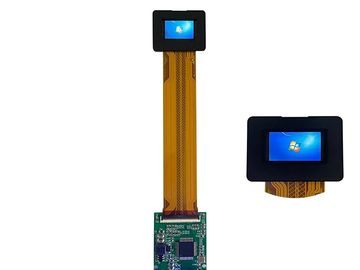

Size: 0.71 inch
Resolution: 1920*1080
Brightness:200 Nits
Interface :LVDS

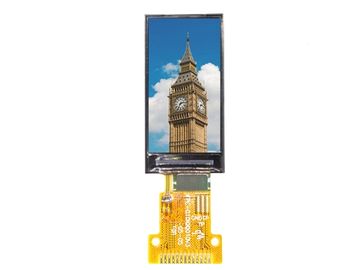

Outline dimensions : 14.04x27.95x1.35 mm
Active area: 10.80x21.70 mm
Number of Pixels: 80RGB(H)x160(v)
Pixel pitch: 0.045(H)x0.1356(V) mm
Interface Type: 4 Line SPI
Driver IC: ST7735S
Module Size: 35.40L*33. 50W*2. 70 (MAX) H mm
View Area: 29.42*14.70 mm
Effective Area: 128*64 dots
Pixel Pitch: 0. 23*0.23 mm
Pixel Size: 0.21*0.21 mm
Display color: 16.7M (RGB x 8bits)
Display format: 1.41 “(320RGBx360)
Pixel arrangement: Real RGB arrangement
Interface: MIPI
LTPS Glass outline: 26.04*31.78 mm
Encapsulation Glass outline: 26.04 *30.18 mm

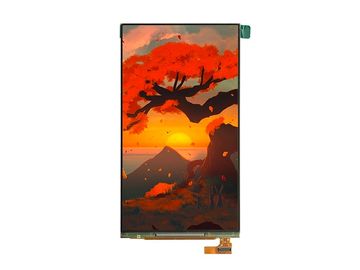

Display color:16.7M (RGB x 8bits) Display format:5.55”HD(720RGBx1280)
Pixel arrangement:Real RGB arrangement
Interface:MIPI 4 lanes
Driver IC:SH1386 (Sino)
Dimension outline: 72.80*131.20*1.81 mm
LTPS Glass outline: 72.80*131.20 mm
