System Driver Boards

 Size: 7.0 inch

 Display Mode:  Motherboard

 Part No.:  MTF070NA-13B

 Resolution:  1024*600

 Outline Dimension:  165.80 x 105.39 x 2.47 mm

 Power ripple:  /

 Interface:  LVDS

 Humidity:  5-95% RH

 Start Time:  3-5S

 Working Temperature:  10-60°C

 Storage Temperature:   20-70°C

CPU:  RK3399,A53,4x1.5GHz+A72,2x2GHz

EDDR: 2GB

MMC : 16GB

DC holder:  5V DC power input

POWER:  Power button

MIPI DSI: Connecting to the screen with an MIPI interface

HDMI : HDMI output interface

TF card :  TF card holder

TYPE-C :  TYPE-C interface, compatible with OTG function

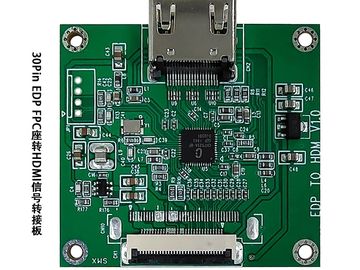

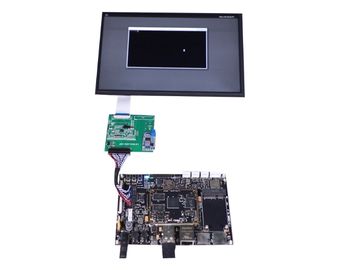

The product has EDP to HDMI output function. Used for video signal conversion, using single chip processing IC with good stability with reliable quality.

NXP i.MX 8M Mini Quad Application Processor based on 1.8 GHz Arm Cortex-A53 and 400MHz Cortex-M4 Cores

2GB DDR4, 8GB eMMC Flash, 32MB QSPI Flash

On-board Gigabit Ethernet PHY

ROHM Power Management IC (PMIC)

Two 0.8mm pitch 100-pin Board-to-Board Expansion Connectors

Supports Working Temperature Ranging from -40°C to 85°C

Supports Running Yocto Linux, Ubuntu Linux, Android

CPU: PX30,Cortex-A35

DDR: 1GB DDR3(4GB)

EMMC: 8GB EMMC RGB

Interface: RGB LCD I/F

DSI Interface: MIPI-DSI LCD I/F

Infrared Receiving: HS0038 infrared integrated receiving head

Buzzer: DC buzzer

Main 3.3V input voltage : 3.3V/4.3A

RTC input voltage:  2.5 to 3V/5uA

Operating temperature:  -40°C~80°C

Storage temperature :  -10°C~50°C

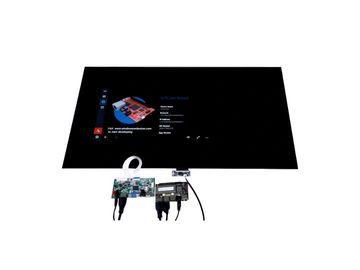

Flooding screen interface:  Single / dual-port LVDS interface

Maximum resolution: 1920x1200

Operating Voltage:  12V or 12V +5 V

Flooding screen voltage: 3.3V or 5V or 12V

Power Mode:  Support low-power mode, standby mode

Standby Power:  <1W

Key Functions: POWER, MENU, +/-, AUTO/EXIT

Audio Output:  2x2W(8Q)
