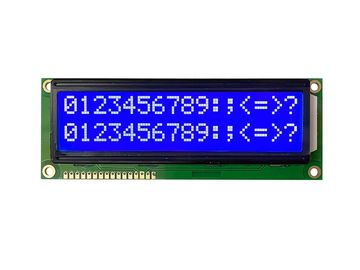

TN LCD Module, COB Dot matrix Character Lcd Module, COG Dot matrix Character Lcd Module.
LCD type & Colour: STN Yellow-green iSTN Blue
View Angle: 6 0' clock
Operating temperature: -0°C∽50°C
Storage Temperature:1-10°C---- 60°C
Control 1C & Package: S6A0069 COBWeight:48g(with B/T)
Backlight: LED
Number of dots: 128X64 dots
Module dimension: 36.6(W) * 28.0(H) *1.7(T)
Viewing area: 34.6(W)* 22.5(H)
Active area: 30.95(W)* 18.47(H)
Dot size: 0.264(W) * 0.217(H)
Dot pitch: 0.242(W) * 0.289(H)
Driving IC: ST7565R
Operation temperature: 0*C 〜+50℃
Storage temperature: -10℃ 〜+60℃
Operating Temp: 0°C To +50°C
Storage Temp: -10°C To +60°C
Operating Voltage: 3.3 V
Frame Frequency: 64 Hz
Front Polarizer: Transmissive, Adhesive
Back Polarizer: Transmissive.Adhesive
Customer No.: Tys805Ta-V1
Connectors: Pin

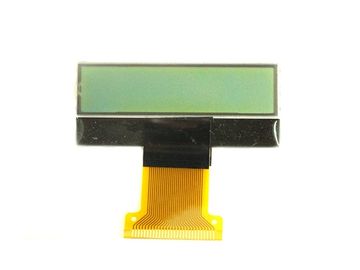

Resolution: 128x32 dots
Outline Dimension: 42*17.66 mm
Active Area: 30.7x7.66mm
Viewing Area: 39*11.66mm
Viewing Direction: 6 o'clock
Connection type: COG
FPC: 28 pin 0.6 pitch
Working temperature : -10°C ~ 60 °C
Storage temperature: -20°C ~ 70 °C

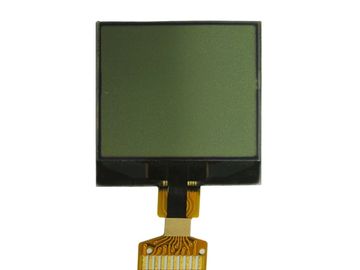

Resolution: 96x64 dots
Outline Dimension: 34mm*32.70mm
Active Area: 27.33mm*18.53mm
Viewing Area: 31.00*27.55mm
Viewing Direction: 16 o'clock
Connection type: COG
FPC: 8 pin 0.5 pitch
Working temperature:-10°C ~ 60 °C
Storage temperature:-20°C ~ 70 °C

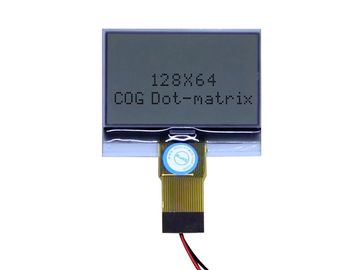

Resolution: 128x64 dots
Outline Dimension: 34.0*27.0 mm
Active Area: 28.0*16.99mm
Viewing Area: 31.0*23.0mm
Viewing Direction: 12 o'clock
Connection type: COG
FPC: 28 pin 0.8 pitch
Working temperature : -10°C ~ 60 °C
Storage temperature: -20°C ~ 70 °C
